QD90G Fifth Wheel
Share to：

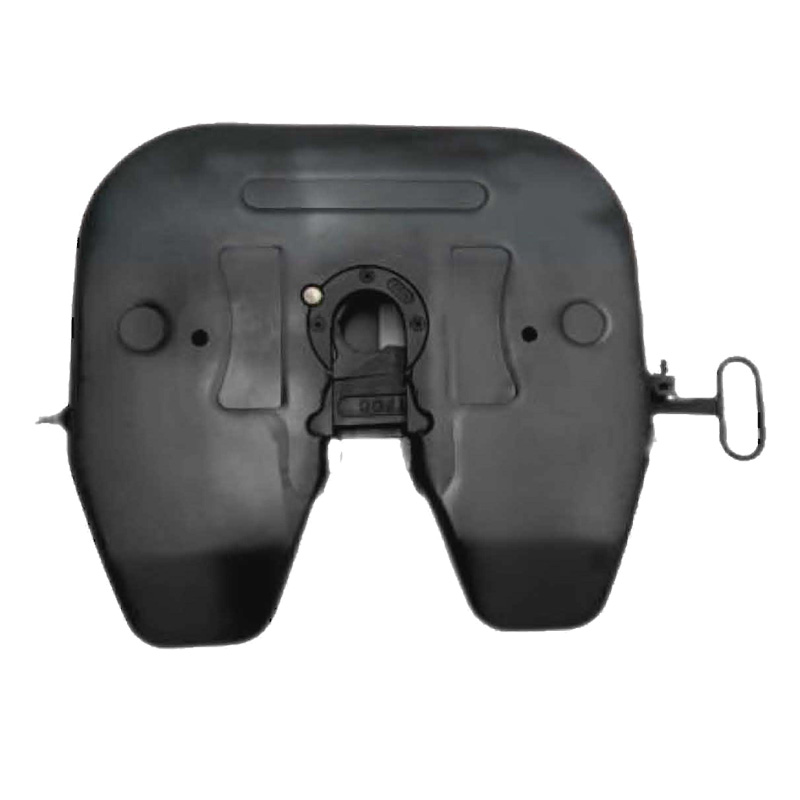

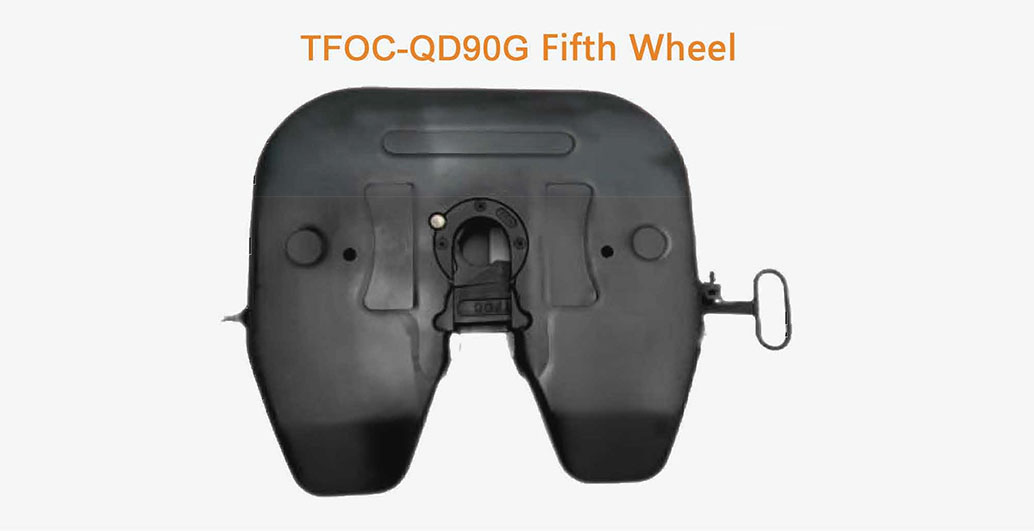

QD90G Fifth Wheel

Detail



Specification：

King Pin Size
D (KN)Rated Verical Load Capacity (T)Longitudinal Swing AngleGCM (T)Overall Height (mm)Weight (kg)
TFOC-QD90G-20022035±12°110200±3188
TFOC-QD90D-18522035±12°110185±3187

Longitudinal Swing Angel: ±12°,

Overall Height: 185/200mm,

Rated Verical Load Capacit: 38000kg

Suitable for Trailer with GVWR below 110T
